ViewSonic LS860WU Laser Projector
5,000 ANSI Lumens WUXGA Installation Projector
- 2nd Generation Laser phosphor technology with 20,000 hours lifespan
- 0.81-0.89 short throw ratio
- Wide H/V lens shift
- 360° Creative Applications & 90° Portrait Mode
- Built-in HDBaseT receiver
ViewSonic's LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together allow for amazing flexibility. Combined with its compact size and built-in HDBaseT, this flexibility helps to create an overwhelmingly immersive experience for blending projection applications in simulation/experience centers, restaurants and gyms, ensuring the cost-effectiveness desired.
Packed with 5,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.
Ultra-high Contrast Ratio
Boasting a 3,000,000:1 ultra-high contrast ratio, even the finest shades of color are enhanced – a key characteristic for delivering razor-sharp images.
2nd Generation Laser Phosphor Technology
The ViewSonic new laser projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant on/off switch from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Laser technology offers a lifespan up to 20,000 hours (4 hours per day for more than 13 years), delivering reliable long-term performance with no degradation in brightness over time so that your installations are consistently vibrant.
No shadows, No blinding lights.
With the latest projection technologies from ViewSonic, you'll enjoy all the benefits a short throw projector can offer. When projecting on to a video wall, there are no distracting shadows on the screen image, offering excellent edge blending projection. Plus, a 1.1x optical zoom provides a higher level of flexibility to fit some of the most challenging installation environments.

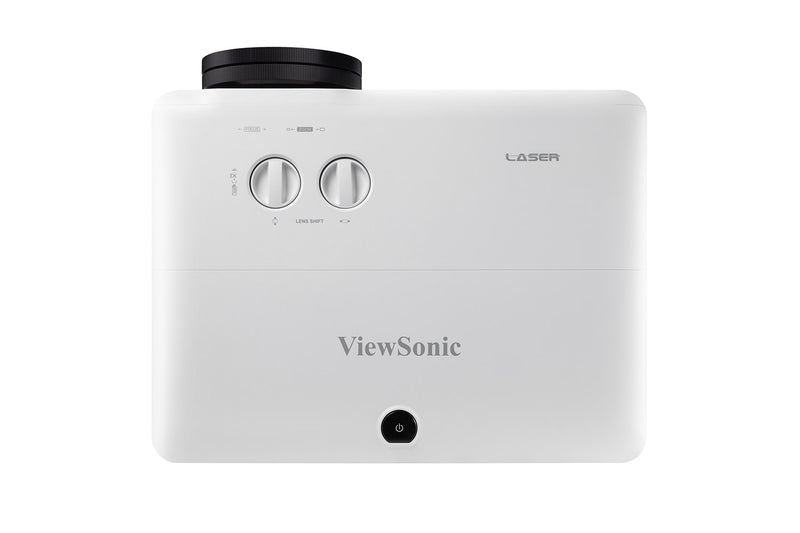

The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range (H: +/- 23%, V: +/-50%) and less placement restrictions.
360° Creative Applications
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.
90° Portrait Mode
Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.
Lighter Weight and Compact Size
It is almost half the weight and 35% smaller in size when compared with its predecessor, which reduces the cost of transportation and enhances the ease of installation.
Built-in HDBaseT Receiver
Its built-in HDBaseT receiver is a cost-effective solution to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p) when combined with a Cat.5e/6 cable and is compatible with any certified HDBaseT transmitter.
Non-stop 24/7 Operation
With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.
This projector comes equipped with Control 4, Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.
* The Control 4 driver will be built into the device in advance and get certification once it has finished the verification process.
A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service center for software updates.
Easy Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
Amazing Color Accuracy
ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.
Sealed Optical Engine with IP5X
The advanced sealed optical engine prevents dust and moisture from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.
Reduced Energy Consumption
When no signal has been detected, the projector will automatically power off to conserve energy and therefore prolong its lifespan.
Power Saving Mode allows users to extend the projector’s lifespan and minimize energy consumption. When in Power Saving Mode, the projector will automatically switch into Eco Mode and SuperEco Mode whenever there is no signal input detected.
|Native Resolution (Native)||1920x1200|
|Brightness||5000 (LED Lumens)|
|Display Colour||1.07 Billion Colors (30 bits per color)|
|Light Source Type||Laser Phosphor System|
|Lamp Life (Normal)||upto 20000|
|Lamp Watt||Nichia 67W x2|
|Digital Zoom||0.8x - 2.0x|
|Image Size||60" ~ 200"|
|Throw Distance||1.04-3.83, (100"@1.74m)|
|Keystone||H:+/-40° , V:+/-40°|
|Lens Shift V. Range||Yes (+50%, -50%)|
|Lens Shift H. Range||Yes (+23%, -23%)|
|Audible Noise (Normal)||35dB|
|Audible Noise (Eco)||28dB|
|Resolution Support||VGA(640 x 480) to WUXGA(1920 x 1200)|
|HDTV Compatibility||480i, 480p, 576i, 576p, 720p, 1080i, 1080p|
|Video Compactibility||NTSC, PAL, SECAM|
|Vertical Scan Rate||23-120Hz|
|Computer in (Share with component)||1|
|HDMI||2, (HDMI 1.4a/HDCP1.4 x2)|
|3D VESA (Sync)||1|
|Audio-in (RCA R/L)||1|
|RJ45 Input||1 (Lan Control)|
|Audio Out (3.5mm)||1|
|USB Type A (Power)||1 (5V/ 1.5A), (share with service)|
|12V Trigger (3.5mm)||1 (3.5 mm)|
|RS232 (DB 9-PIN Male)||1|
|USB Type A (Services)||1 (Share with USB A Output)|
|Power Supply Voltage||100-240V+/- 10%, 50/60Hz, (AC in)|
|Temperature||0°C ~ 40°C|
|Net Weight||6.6 kg|
|Dimension (WxDxH) With Adjustment Foot||405x305x145 mm|
|OSD Language||English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages|
|Remote Control||1 , (w/ laser pointer)|
