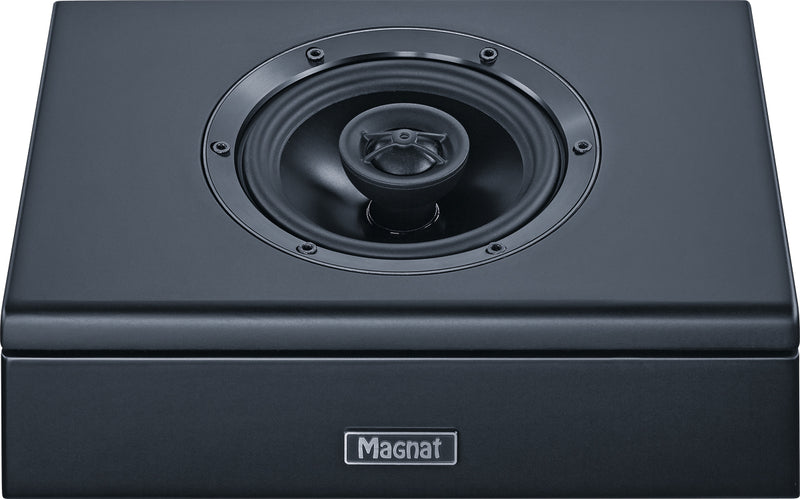

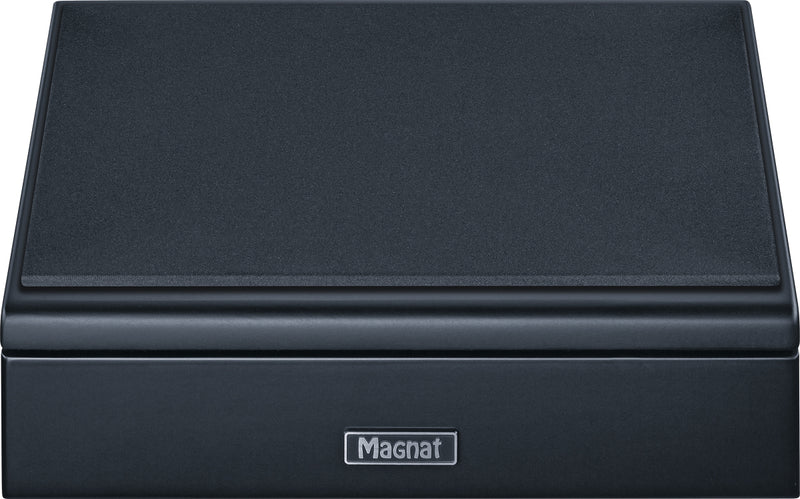

MAGNAT Cinema Ultra AEH 400-ATM
MAGNAT Cinema Ultra AEH 400-ATM
Key Features
- Extends a home cinema system to include the third dimension for a perfect surround sound experience
- Compacter, efficient add-on speaker with a large number of application options
- High-performance coaxial driver with 13 cm woofer and 25 mm dome tweeter
- Can be used as a Dolby Atmos-certified add-on speaker on LCR 100-THX or as an overhead speaker on the wall or ceiling
- Switchable crossover for optimum sound with any application
With defined dispersion characteristics for perfect Dolby Atmos surround sound
Dolby also imposes extremely strict requirements to ensure that the demanding multi-channel procedure can generate perfect reproduction. The dispersion characteristics and position of the add-on loudspeakers are important. A subwoofer with an integrated tweeter, a so-called coaxial driver, is the best option here. The Cinema Ultra AEH 400-ATM is a coax with a 13 cm bass plus 25 mm tweeter cone and is a perfect fit, in terms of both external appearance and installation depth, on top of an LCR 100-THX – which is also where it should be according to the Dolby guidelines. For those cases where home cinema fans prefer to mount the excellent sounding AEH 400-ATM on the wall or ceiling, we have, instead of the frequency response optimised for ceiling reflection as stipulated by Dolby, included a second crossover for linear reproduction which can be activated via a toggle switch.
SPECIFICATIONS
- Principle: Dolby Atmos-enabled high-performance add-on loudspeaker with direct-radiating mode
- Equipment: 1 x 5,25" coaxial speaker
- Power Handling (RMS / Max.): 50 / 120 watts
- Sensitivity (2.8V/1m): 89 Db
- Impedance: 6 ohms
- Frequency Response: 45 – 37.000 Hz
- Crossover Frequencies: Atmos-Modus: 3.200 Hz, Direct-Modus: 3.300 Hz
- Recommended Amplifier Output: 20 - 120 watts
- Dimensions (WxHxD): 280 x 150 x 188 mm
- Weight: 3.7 kg
- Cabinet surface: Front: black silk matt /, Front: black silk matt /
